- UTP Cable

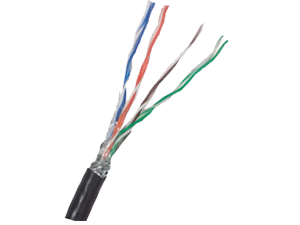

- LAN Cable UTP CAT 5E
-
- Conductor Resistance(DC): 100.0 ohms/1000 mtr@20 Degree C max Resistance Unbalance: 5% max Mutual Capacitance: 5.6 nF/100 mtrs max. Capacitance to 1 kHz 50±5nf/km (max.) Capacitance Unbalance Pair/ Ground: 330PF/100M max Propagation Delay Skew: 536 nS/100M Normal Velocity of Propagation: 69% Impedance: 100 ± 15 % OHMS Worst Case cable skew: 45ns/100m Generally confirming to EIA/TIA 568‐C.2
-
-
- UTP Cable

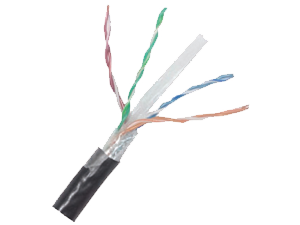

- LAN Cable UTP CAT 6E
-
- Conductor Resistance(DC): 100.0 ohms/1000 mtr@20 Degree C max Resistance Unbalance: 5% max Mutual Capacitance: 5.6 nF/100 mtrs max. Capacitance to 1 kHz 50±5nf/km (max.) Capacitance Unbalance Pair/ Ground: 330PF/100M max Propagation Delay Skew: 536 nS/100M Normal Velocity of Propagation: 69% Impedance: 100 ± 15 % OHMS Worst Case cable skew: 45ns/100m Generally confirming to EIA/TIA 568‐C.2
